| Specification |
| Dimensions |
| Overall Length | 7040 mm |
| Overall Width | 2250 mm |
| Overall Height | 3010 mm |
| Wheelbase | 3650 mm |
| Front Overhang | 1160 mm |
| Rear Overhang | 2230 mm |
| Interior Height | 1860 mm |
| First Step Height | 400 mm |
| Gross Vehicle Weight | 6900 kg |
| Seats Capacity | 24-29 |
| Max Speed | 100km/h |
| Engine |
|
| Engine Model | YC4FA130-40 |
| Engine Type | 4 cylinders in-line, water-cooled, four-stroke, |
| turbocharger, inter-cooled,direct injection |
| Position/Fuel | front/diesel |
| Max Output | 95 kw |
| Max Torque | 390Nm/rpm |
| Displacement | 2982 ml |
| Emission Standard | Euro IV |
| Chassis |
|
| Chassis Model | EQ6650K4AC |
| Gear Box | Dongfeng 140 |
| Clutch | single plate,dried,diaphragm spring,clutch booster |
| Front Axle | Dongfeng stock (2.7T) (Φ310×130) |
| Rear Axles | Dongfeng stock (5T) (Φ310×160) |
| Suspension | Leaf spring front 9 rear 11 |
| Steering | mechanical steering |
| Brake | Dual circuit full air brake |
| Fuel Tank | 90L |
| Tyres | 7.50-16 |
| Battery/Generator | 6-QA-105×2/55A |
| Others | Aluminum wanter tank,engine intake air preheater |
| Body |
|
| Body Type | Non-integrated body structure
Common trimming, left interior luggage rack, right interior |

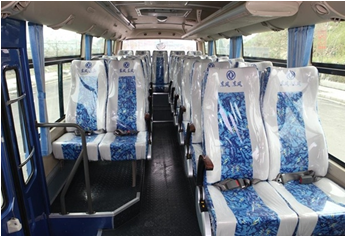

| Interior Trimming | Common trimming, left interior luggage rack, right interior handrail |
|
| Side Window | All splice window for the upper part, push-pull window for the bottom part (green) |
|
| windscreen | Front : laminated glass; Rear : toughened glass |
| Defroster | Defroster with changeable power 24V,130W |
| Windscreen Wiper | opposite electric wiper system |
| Door | Manual pneumatic folding door |
| Rearview system | Common inner rearview mirror, rabbit-ear-type mirror |
| Others | Half-rolling sunshade curtain, air horn,700 scuttle |
| PVC flooring, flat foor, non-sinking rear compartment |
| Plain paint,steel plate stamping hatch |
| Safety & Performance |
Standard
GPS System, vehicle travelling data recorder
Speed-limiting device (100km/h top )
Safety belt equipped with every seat, Emergency switch
safety hammer x2, 4kg fire extinguisher
2+2 layout seats, 24 common seats
Optional
ABS (Antilock Braking System); Engine exhaust brake
Common water heating;fuel oil type liquid heater; Wall radiator
All rolling sunshade curtains, folding side window curtains
Shock absorber for driver seat,sunk back,commode handle
Ventilation skylight; Wheel shield;rimq rear mirror,corridor carpet,
Metal paint; Adjustable seats with arm surport;(24-29) all kinds of floor can be chosen; handrails; electronic stop announcer; coin-collection |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| machine,Side luggage compartments; water dispenser; |
| Ventilated skylight,empty filter hatch,4kg fire extinguisher |
| Entertainment Systems & Digital Amenities |
Standard
MP3 radio system
15-inch/17-inch manual foldable color LCD, DVD player
Dongfeng Pannico top-mounted A/C (12KW, 32 compressor)
New front and rear combination lamp;
Optional
MP4/MP5 rigid disk player;
Electronically controlled rearview mirrors , Electric clock with temperature display,off monitoring system,In-bus video monitor system,Out swining doorremote switch,Central high mount stop lamp
7-inch color screen reversing rearview monitoring system |
|
|
|
|
|
|
|
|
|
|
|
