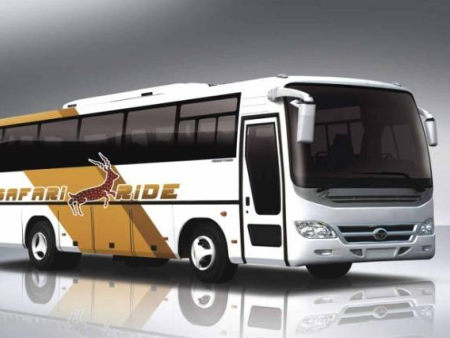

The Used Coach Bus Golden Dragon DF6101 is suitable for the passenger and traveling, without any traffic accidents, 2009 year ,Euro III Emission Standard with low price and great performance
Specification Overall Specification Over length(mm) 10495 Engine Specification Engine Model EQB210 20 Cummins engine Over width(mm) 2500 Engine Type in line, 6 cylinder,inter-cooling, directly injection Over height(mm) 3500 Displacement(L) 5.2 Wheelbase(mm) 5000 Tread(mm) 2020/1840 Max. output (kw/rpm) 155/2500 Overhang F/R(mm) 2250/3245 Max.torque (N.M/ rpm) 702/1500-1600 Approach/Departure Angle (°) 11/9 Fuel Type Diesel,EuroII Performance Specification Chassis Model Dongfeng Max. speed(km/h) ≥100 Max. grade ability(﹪) ≥25 Min. turning diameter(m) ≤22 Engine Position Front Fuel Tank Capacity(L) 300 Brake distance (v=30km/h) ≤10 Luggage Compartment(m3) 8 Max. total mass(kg) 14000 Curb Weight(kg) 10500 Axle F/R(kg) 5000/9000 Item Standard Equipment Chassis Clutch Φ395 Single Dry Plate ,Hydraulic Control,Pneumatic Assist Transmission FAST Brand 6 forward speed and 1 reverse speed Rear Axle 9T, casting Axle housing, Full Floating Semi-Shaft Front Axle 5T,integral “T”type, forging steel part, Frame press riveted joint structure Suspension Multi Leaf Spring(F 10/R 10), bidirectional function hydraulic canister shock-absorber and horizontal stabilizing Steering System Integral power steering,adjustable steering wheel(front, back, up and down),Left hand drive Brake System dual circuit pneumatic brake, parking braking, energy storage spring brake-away brake, brake clearance adjustable arm, ABS Tire 11.00R20 11.00R20 Radial tyre Wiring 24V,single wire, cathode ground connection Starter electromagnetism control type Battery/Generator 6-Q-180Ah 2PCS / 28V/70A Others NONE Interior Trimming Body Structure Semi-Integral body, Cold-bent steel frame, Pre-stress Stretched Panel Skin, flat floor Three-ply board for roof and side wall, softening interior fitting, two airway, standard, inner luggage carrier, Interior Trimming Door and Door Pump Front Single outward swing door Windows Cementation right-angle pull-push side window, front laminated windscreen,rear toughened fibre glass Floor Flat floor, color leather floor Seat 45+1 seats high backrest, adjustable driver seat A/C System Tianxi brand, top mounted dependent A/C,26000Kcal,fresh air device. Heating System NONE Defrosting system Natural wind defrosting Audio&Visual System DVD(single disk),one 17 inch electrical folding LCD Rearview System Manual Rear Mirror Lamp Combination headlamp and tail lamp Wiper Opposite wiper Service Facilities electric clock, fire extinguisher, driver rolling curtain, curtain for side windows, driving recorder, one roof windows with ventilator Others Domestic paint Remarks The above is standard configuration, we will make configuration according to your special requirement. Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
