4X2 Tracotor Truck
| TEL： | +86-592-5606081 |
|---|---|
| Mob/Wechat： | +8618065926652 |
| QQ： | 2104297526 |
| E-mail： | xiamen@china-busparts.com |
| Price： | Price Negotiable |
| More Information | |
| Share： |
|
产品介绍
Related products

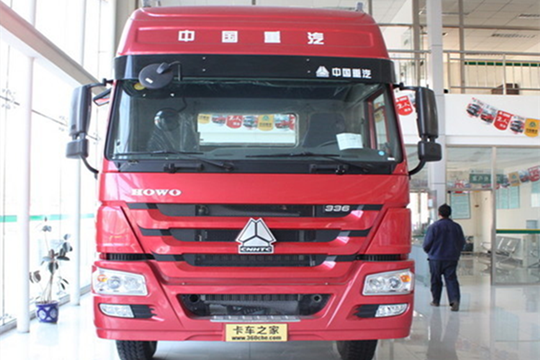

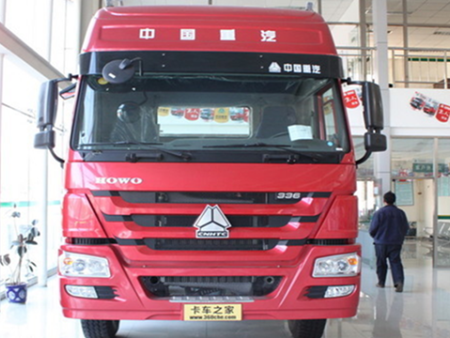

SINOTRUK HOWO 371HP 4x2 tractor truck
SINOTRUK HOWO 4x2 tractor truck
Drive type: 4x2
Cab: HW79 high roof cab with two sleeper beds,with A/C
Engine: Weichai brand WD615.47
Type: 6-cylinder in-line with water cooling, supercharging & intercooling
Displacement: 9.726L
Engine output: 371hp /2200 rpm
Max. torque: 1460 NM /1300-1600rpm
Transmission (gear box): HW19710, 10 speed transmission
Clutch: D430 Diaphragm type
Steering: ZF8098
Front axle: HF7 drum type, 7tons
Rear axle: HW1667 single reduction
Ratio=3.73
Fuel tank: 400L
Tire: 12.00R20, 6+1spare
Kerb. mass: 7180kg
Total mass: 18000kg
Max.towed capacity: 37100kg
Max. speed (km/h): 102
Max. gradeability(%): 27
Approach/departure angle: 16/42 degree
Overall dimension(mm): 6110×2496×3563
Wheel base (mm): 3500
Front/rear overhang (mm): 1500/1110
Front /rear wheel track(mm): 2022/1850
Saddle joint surface height(empty/full): 1330/1297
Front /rear turning circle(mm): 2220/1820
Minimum ground clearance(mm): 267
Saddle size: 2’’(50#) or 3.5''(90#)
