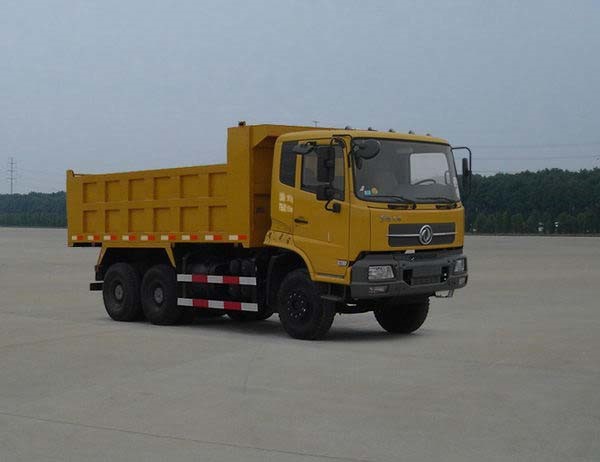

Used Dongfeng dumper truck DFL3250B
| TEL： | +86-592-5606081 |
|---|---|
| Mob/Wechat： | +8618065926652 |
| QQ： | 2104297526 |
| E-mail： | xiamen@china-busparts.com |
| Price： | Price Negotiable |
| More Information | |
| Share： |
|
Previous：
Used Dongfeng Dump Truck DFD3251
产品介绍
Related products
Product Name DFL3250B Type 6x4 Chassis Dimensions(mm) The pictures are just for reference Overall chassis length 7700 Cab width 2500 Cab height (unladen) 3030 Wheel base 3800+1350 Front overhang 1450 Rear overhang 1100 Maximum velocity (Km/h) 75 vehicle weights(kg) G.V.W 25000 Curb weight(chassis)
7500 Frame profile Dimensions(mm) Frame width (front ) 860 Frame width ( rear ) 860 Section height 300 Section width 90 Engine Type Guangxi yuchai YC6A260 33 Emission level Euro II Maximum power 191kw (180hp) at 2300 rpm Maximum torque 1000Nm at 1300-1600 rpm Number of cylinders 6 Displacement (lit) 7.255 Cylinder bore (mm) 108 Stroke (mm) 132 System Water cooled,turbocharged,after cooled ,mechanical pump with EGR,cold start. Clutch Type SACHS Plate's diameter ¢430mm operating system Hydraulic control with air booster, pulling Gear box Type ZF9S1110 Number of gears 9 forward gears& 1 reverse ,synchronized Ratios Forward:12.73;8.83;6.28;4.64;3.48;2.54;1.81;1.34;1.0 Reverse:12.04； PTO Type NH/4 Maximum output torque 430Nm Brake System Full air brake system, split pneumatic circuit ; split pneumatic circuit ; parking spring brake acting on rear axles , exhaust brake,no ABS Cab Sleeper cab,forward control type,low roof,new face, all welded steel cab of tilt type, hydraulic cab tilting, rear mechanical cab suspension, adjustable driver’s seat, air conditioning system, optional manual windows,manual door lock. Axle Front Elliot type, I beam section Load capacity(ton) 6 Rear Hub reduction ,tandem axle, with axle lock and wheel lock , ratio 5.26 Load capacity(ton) 26 Tyres 11.00-20;11.00R20 ;295/80R22.5 Suspension Front 8- Leaf spring with shock absorber Rear 13-leaf spring Battery Voltage (V) 24 Battery capacity (A.h) 165X2 Fuel Type Steel fuel tank, with lockable cap Capacity 280lit Standard Equipments 5600*2300*1360(Thickness:side:6mm; floor:8mm,front raise:160) Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
