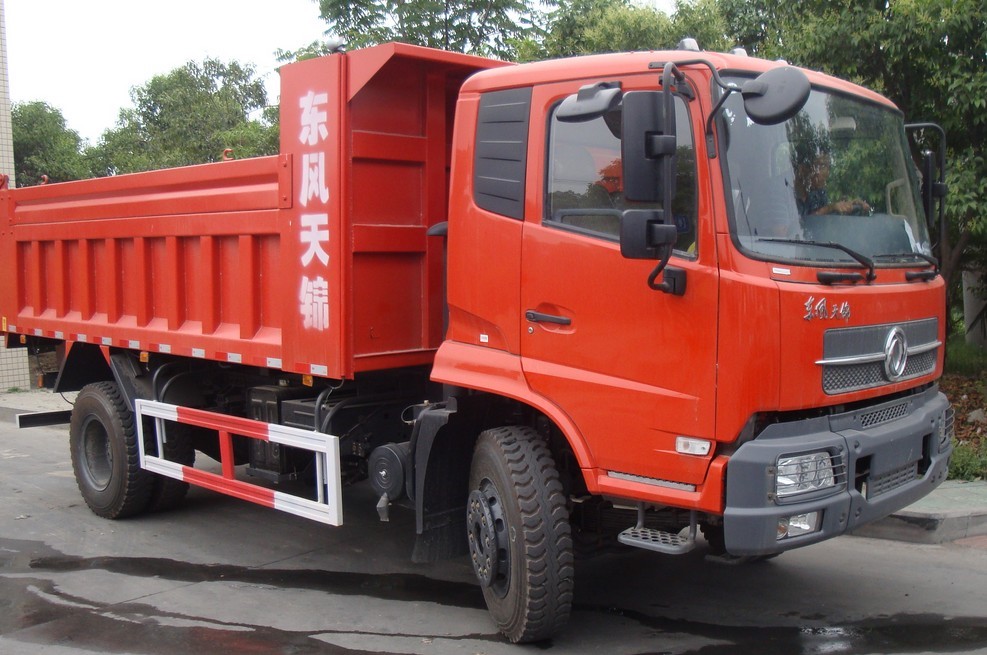

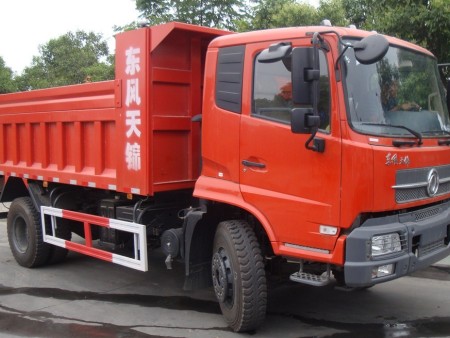

| Dongfeng Dump Truck DFL3120B1 |
| Specification |
|
| Drive mode | 4×2 |
|
| Engine | Model | Cummins B210 20 |
|
| Type | 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR |
|
| Max. power(Kw/rpm) | 155/2500 |
|
| Max. torque(N.m/rpm) | 700/1500 |
|
| Bore /Stroke(mm) | 102×120 |
|
| Displacement(ml) | 5900 |
|
| Type of fuel | Diesel |
|
| Compression ratio | 17.5:1 |
|
| No. of valves | 2 |
|
| Cab | D530 | one and a half row |
|
| Capacity | 3 persons |
|
| Gearbox | Type | Fast8JS118 |
|
| Max. torque(N.m) | 1180 |
|
| Gear ratio | 8 forward/1 reverse 11.40 7.94 5.63 4.06 2.81 1.96 1.39 1.00 / 11.35(R)
|
|
| Clutch | Φ395mm | push-type diaphragm spring clutch |
|
| weight specifications | 300×800×(8+6) |
|
| No of Spring leaves | 8/10+8 |
|
| Tyre | Size | 11.00R20 |
|
| Air conditioner | A/C |
|
| Dimensions | Overall dimension (mm) | 8000×2500×2960 |
|
| Inner dimension (mm) | 5400×2300×800 |
|
| Wheel base (mm) | 4500 |
|
| App./Dep. angel (°) | 25/20 |
|
| Performance | Max. speed(Km/h) | 90 |
|
| Mass | Payload (Kg) | 13,000 |
|
| Curb weight (kg) | 8,735 |
|
| G.V.W (Kg) | 21,735.00 |
|
Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By container or RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
